Find your trim from one photo of its cut end

Trim Scan outlines the profile of a piece of trim from a photo of its cut end and suggests matching catalogue profiles. The photo is processed on your phone and isn't uploaded.

Guide revision: 2026-10-11

▶ Watch this video full size

5-step walkthrough with voiceover, recorded from the same checked steps.
Voiceover: Kokoro text-to-speech (Apache 2.0).

How do I start?

Open our trim section and tap Trim Scan. You need a piece of the trim (an offcut is ideal) and your phone's camera. The printed calibration sheet is optional but gives the most accurate size.

Camera access: your phone asks permission the first time you use the guided camera or Take a photo.
Open Trim Scan

What do I do next?

  1. 1

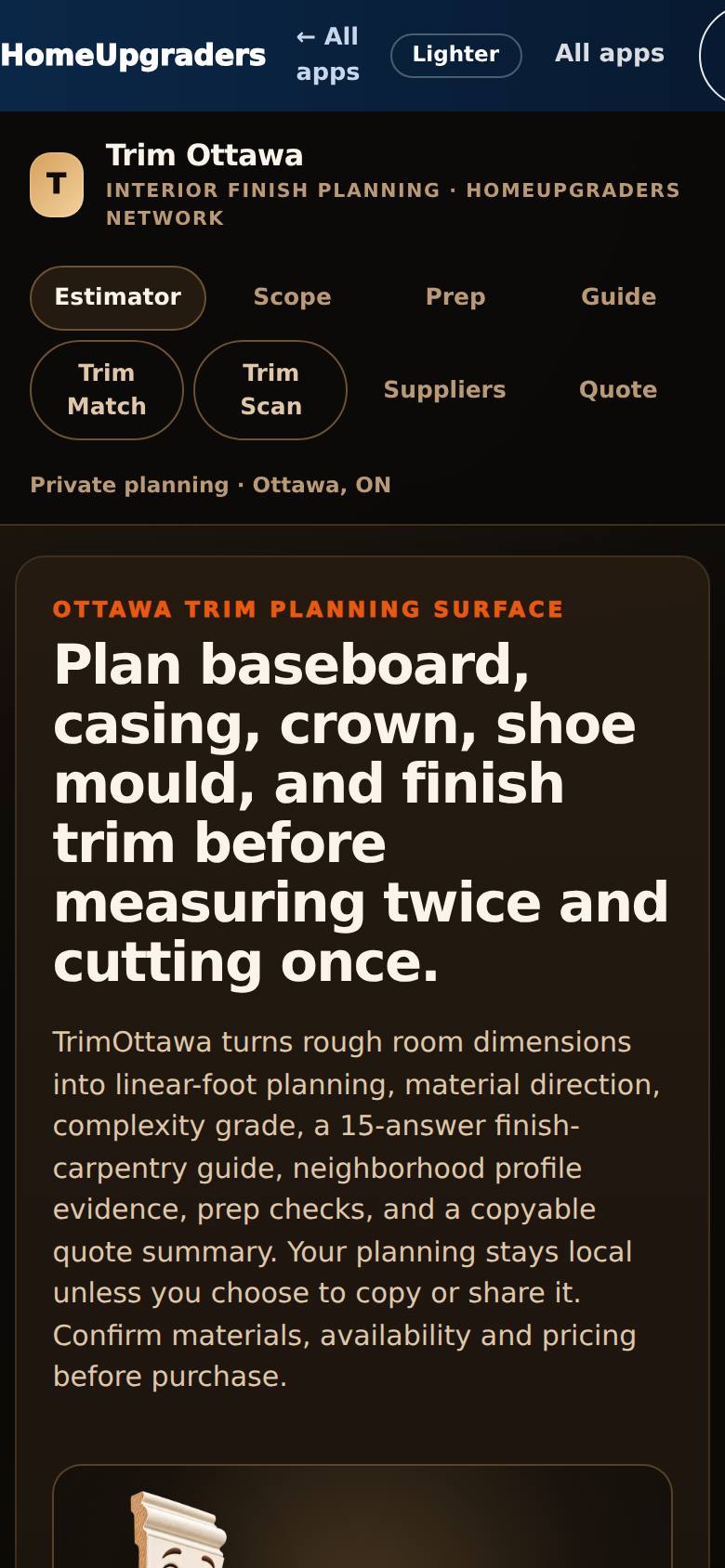

    Open our trim section

    Open our trim section from the Apps Hub.

    The trim planning studio, with Trim Scan in the menu.

    The trim planning studio, with Trim Scan in the menu.
  2. 2

    Open Trim Scan

    Tap Trim Scan.

    Calibration sheet, then the photo, then the matches.

    Calibration sheet, then the photo, then the matches.
  3. 3

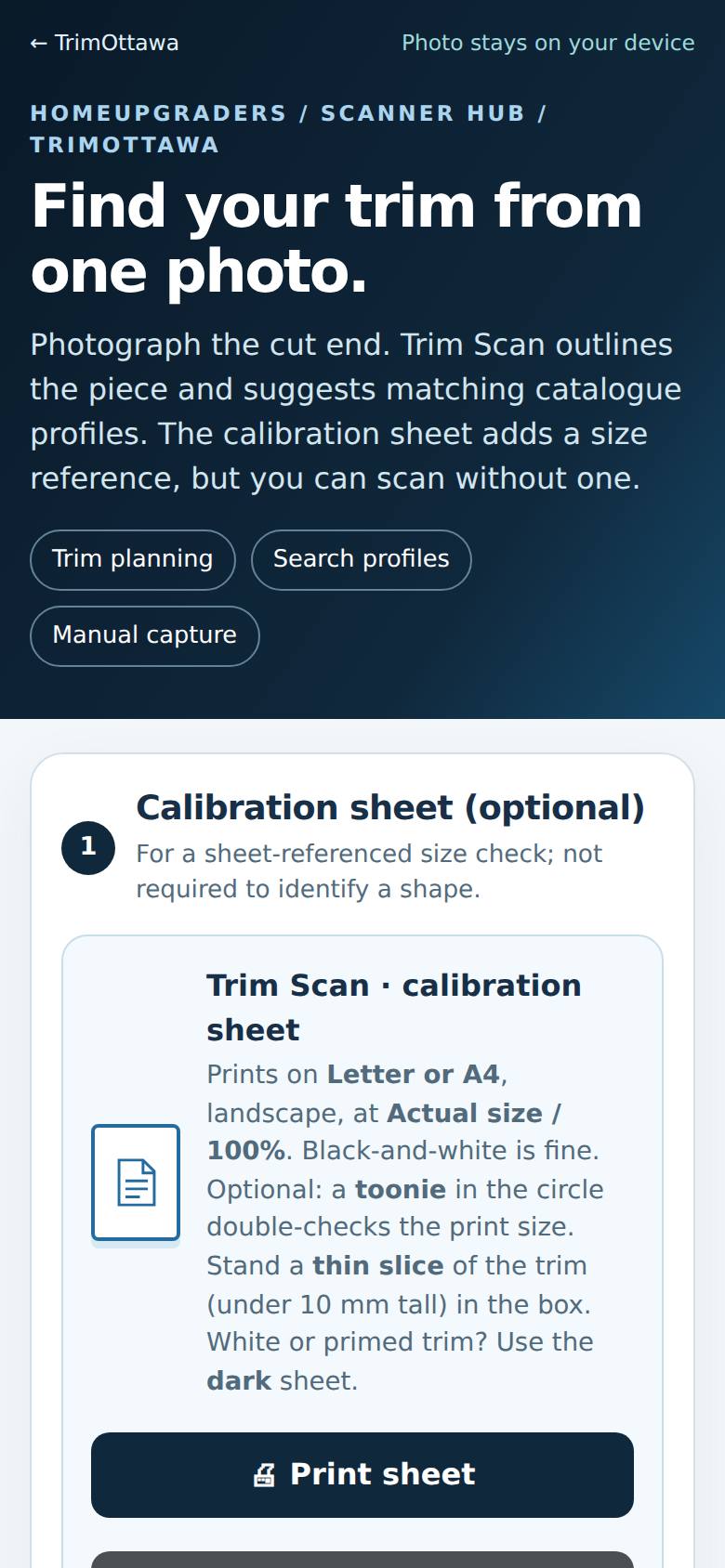

    Print the flyer

    Print a colour flyer at actual size; stand a slice of the trim in the box and put a toonie in the circle.

    Print sheet, dark sheet, or colour flyer A or B.

    Print sheet, dark sheet, or colour flyer A or B.
  4. 4

    Choose the photo

    Tap Choose existing photo (or Take a photo) and pick the photo of the flyer.

    Flyer recognised, print size confirmed by the toonie, perspective corrected.

    Flyer recognised, print size confirmed by the toonie, perspective corrected.
  5. 5

    Read the matches

    Compare the top matches with your piece.

    Door stop 01698, 3/8 by 1-3/8 inch, 0.36 mm from the catalogue drawing.

    Door stop 01698, 3/8 by 1-3/8 inch, 0.36 mm from the catalogue drawing.

What result should I expect?

Not checked in this guide yet — the scan result needs a real photo of a trim's cut end. The app says its matches are candidates to compare against the actual profile, not guaranteed identification.

How do I save, share or get help?

The photo stays on your phone. From the result you can search the profile catalogue or go back to Trim planning.

If something goes wrong
  • The outline is messy. Photograph the cut end straight on, filling the box, against a plain background (or on the calibration sheet).

Every screenshot here was taken while doing these exact steps on the app's current build (e2193a6), on a phone-sized screen, signed out, on 2026-10-11. Steps that need an account are marked. Nothing was submitted or bought.
