Lay out a basement or floor: rooms, furniture and a project file

Layout Library Rooms plans a basement or floor inside its footprint. Mark the beam, posts, stairs and mechanical room first and it works around them — including the 3 ft of floor at the bottom of the stairs, which only a hallway or rec room may take. It can suggest layouts, furnish every room with keep-clear checks, and show it all in 3D.

Guide revision: 2026-10-09

▶ Watch this video full size

21-step walkthrough with voiceover, recorded from the same checked steps.
Voiceover: Kokoro text-to-speech (Apache 2.0).

How do I start?

Open Rooms from the Apps Hub (Layout Library → Rooms). Type the overall size, mark the beam, posts, stairs and mechanical, then add rooms. No account needed to plan.

Save to my project (keeping it in your HomeUpgraders account) needs you to be signed in. Planning, furnishing and Save Project File work without an account.
Open Rooms

What do I do next?

  1. 1

    Open Rooms

    Open Layout Library, then Rooms, from the Apps Hub.

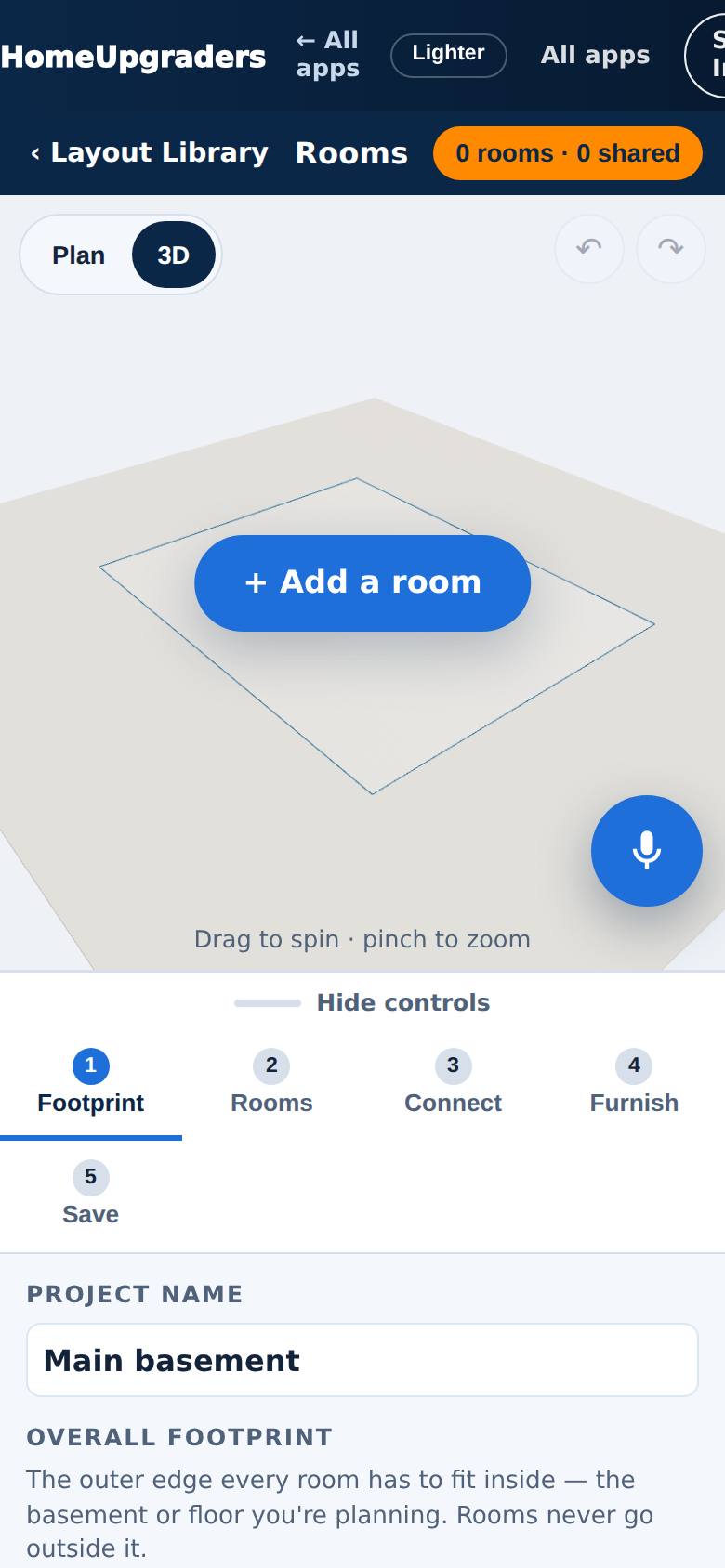

    Rooms opens on step 1, Footprint, with an empty 3D view.

    Rooms opens on step 1, Footprint, with an empty 3D view.
  2. 2

    Set the footprint

    On Footprint, type the overall width and length in feet: 32 by 34.

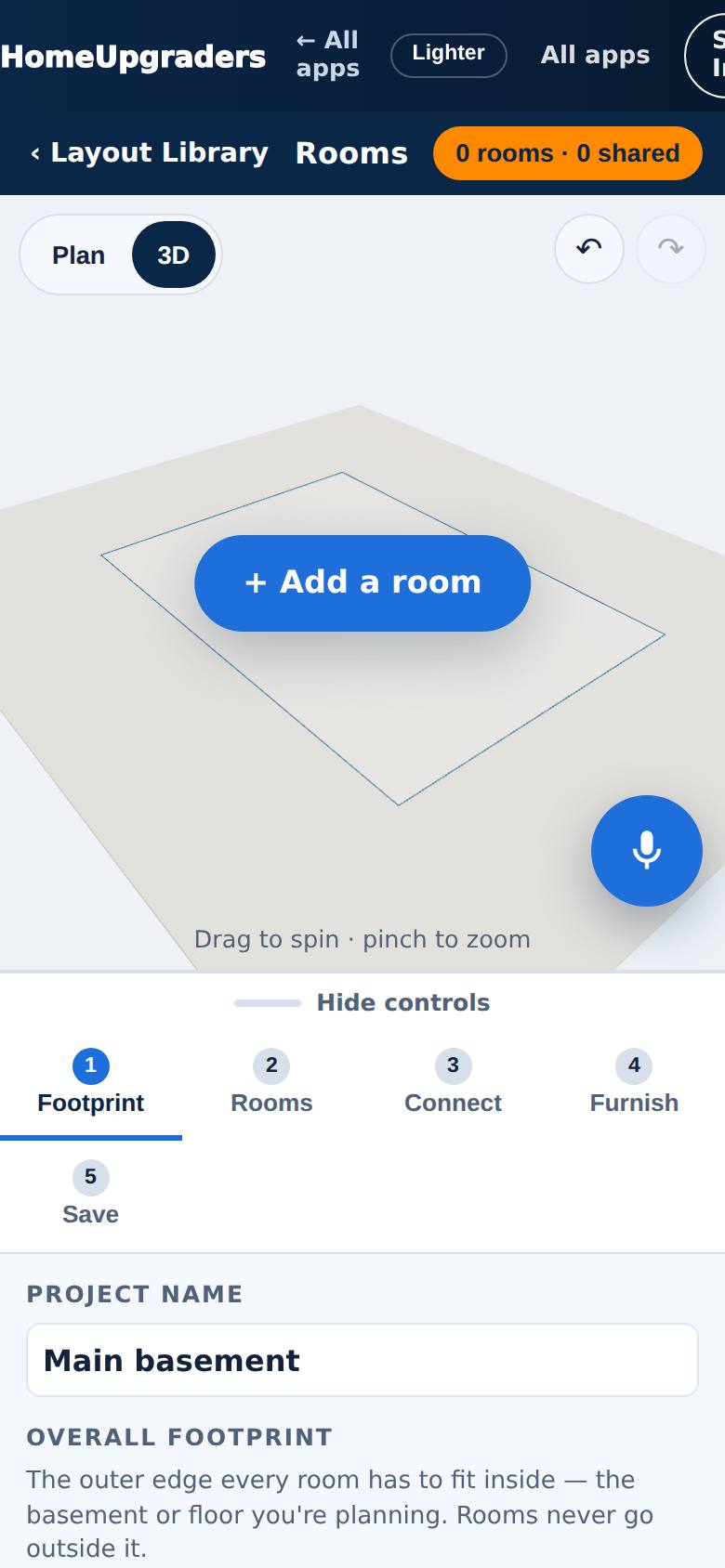

    The outer edge of the basement appears on the plan. Every room has to fit inside it.

    The outer edge of the basement appears on the plan. Every room has to fit inside it.
  3. 3

    Mark the beam

    Under "What's already down there", tap Beam.

    The beam goes in by itself the way a house is built: the long way, down the middle (16 ft from the left wall). Type a different distance if yours is off-centre.

    The beam goes in by itself the way a house is built: the long way, down the middle (16 ft from the left wall). Type a different distance if yours is off-centre.
  4. 4

    Mark the posts

    Tap Post twice.

    Each post lands on the beam, spaced along it: one at 17 ft, the next at 8 ft 3 in. Posts carry the beam every 8 to 10 ft. Type the real distances if you have them.

    Each post lands on the beam, spaced along it: one at 17 ft, the next at 8 ft 3 in. Posts carry the beam every 8 to 10 ft. Type the real distances if you have them.
  5. 5

    Mark the mechanical room

    Tap Mechanical room, then type its corners: 3 ft from the left wall, 0 from the front, 6 ft wide, 8 ft deep.

    A grey box on the front wall, where the furnace vents outside and the gas comes in. No room can be put over it.

    A grey box on the front wall, where the furnace vents outside and the gas comes in. No room can be put over it.
  6. 6

    Mark the stairs

    Tap Stairs. Type 0 from the left and 0 from the front, and tap "Front" under "Going up toward the". The shape chips offer Straight, Straight with a landing halfway, L and U.

    The stairs run down the left wall and the dotted box at their foot is the 3 ft of floor you step off onto. That floor has to belong to the hallway or the rec room.

    The stairs run down the left wall and the dotted box at their foot is the 3 ft of floor you step off onto. That floor has to belong to the hallway or the rec room.
  7. 7

    Add the laundry

    On Rooms, name it Laundry, choose Laundry, type 7 by 11, tap Add room.

    It slots in beside the mechanical room, so the furnace, water heater, washer and dryer share one corner and the plumbing stays short.

    It slots in beside the mechanical room, so the furnace, water heater, washer and dryer share one corner and the plumbing stays short.
  8. 8

    Add the hallway

    Add Hallway: type Hallway, choose Hallway, 4 by 34, Add room.

    A 4 ft hall runs front to back right under the beam, so its wall hides the posts. Every room on the right opens off it.

    A 4 ft hall runs front to back right under the beam, so its wall hides the posts. Every room on the right opens off it.
  9. 9

    Add Bedroom 1

    Add Bedroom 1: type Bedroom, 12 by 12, Add room.

    It takes the front-right corner, on two outside walls, with the hallway at its door.

    It takes the front-right corner, on two outside walls, with the hallway at its door.
  10. 10

    Add the rec room

    Add Rec room: type Living / rec room, 16 by 23, Add room.

    The family room fills the left side behind the stairs, and the foot of the stairs lands inside it. The layout check now says "The stairs come down into Rec room".

    The family room fills the left side behind the stairs, and the foot of the stairs lands inside it. The layout check now says "The stairs come down into Rec room".
  11. 11

    Add the bathroom and Bedroom 2

    Add Bathroom (Bathroom, 12 by 8), then Bedroom 2 (Bedroom, 12 by 14).

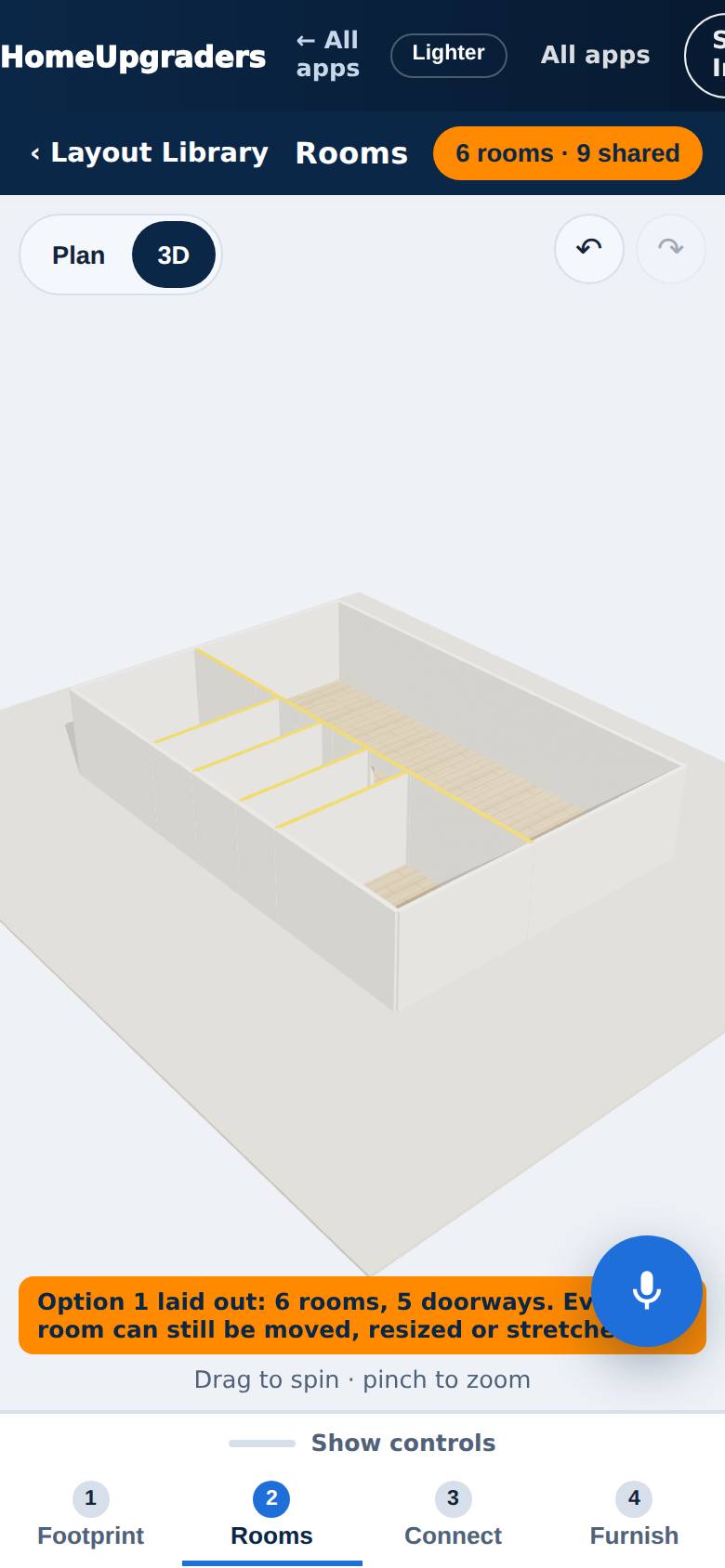

    They fill the right side below Bedroom 1: the bath in the middle, the second bedroom in the back corner. Six rooms.

    They fill the right side below Bedroom 1: the bath in the middle, the second bedroom in the back corner. Six rooms.
  12. 12

    Connect: the shared walls

    Tap Connect. Every wall two rooms share is listed.

    Eight shared walls, each with a button. Doors only go where rooms touch.

    Eight shared walls, each with a button. Doors only go where rooms touch.
  13. 13

    Let it place the doors

    Tap "Place doors for me".

    Five doors: a wide opening from the rec room into the hall, and a door from the hall into the laundry, each bedroom and the bath. Tap any door in the list to move it.

    Five doors: a wide opening from the rec room into the hall, and a door from the hall into the laundry, each bedroom and the bath. Tap any door in the list to move it.
  14. 14

    Furnish every room

    On Furnish, tap "Furnish every room".

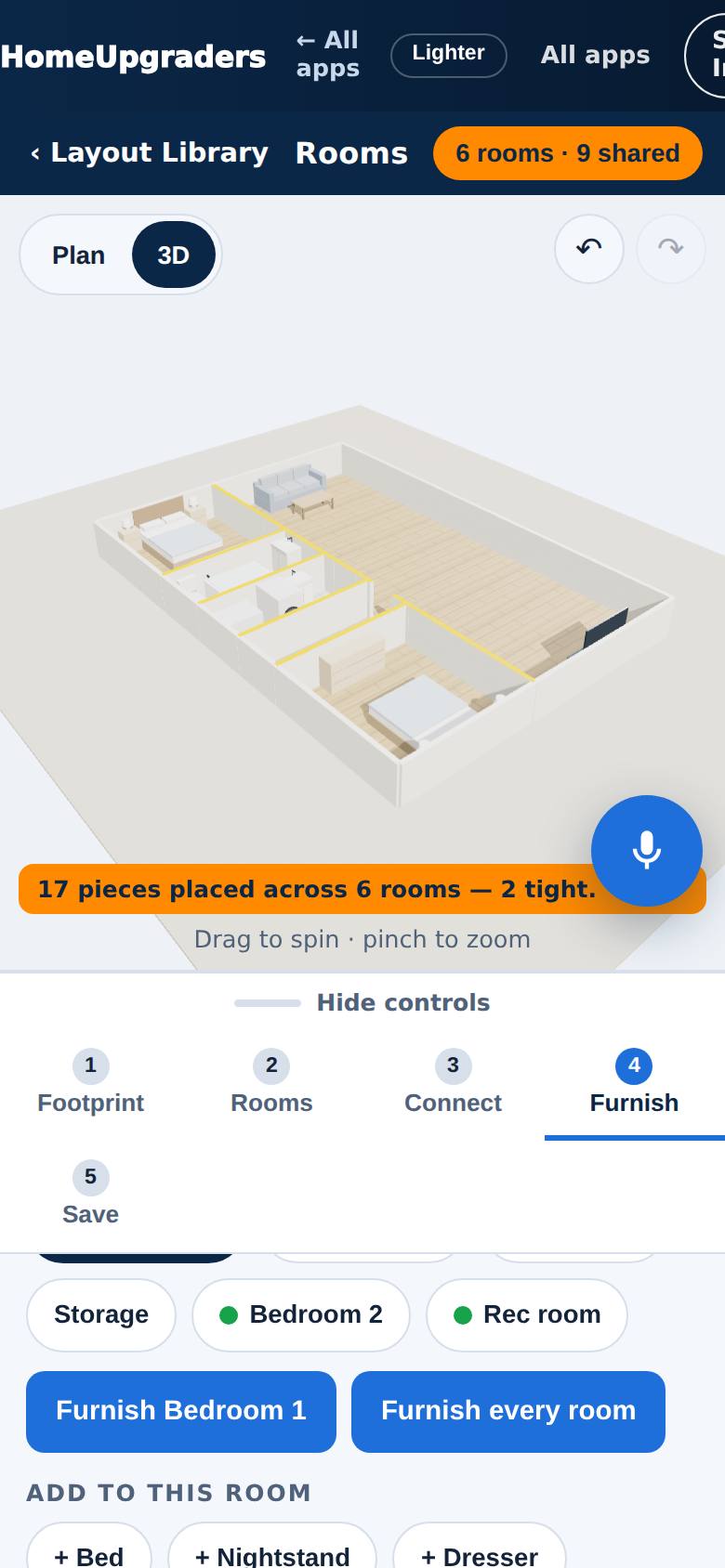

    Beds, dressers, a sofa, TV unit, tub, toilet, vanity, washer and dryer are placed, with keep-clear checks.

    Beds, dressers, a sofa, TV unit, tub, toilet, vanity, washer and dryer are placed, with keep-clear checks.
  15. 15

    Check the bathroom

    Tap the Bathroom chip.

    Tub, toilet and vanity all fit. The "Add to this room" list below lets you add or swap pieces yourself.

    Tub, toilet and vanity all fit. The "Add to this room" list below lets you add or swap pieces yourself.
  16. 16

    Check the laundry

    Tap the Laundry chip.

    Washer, dryer and a laundry tub, each marked "fits".

    Washer, dryer and a laundry tub, each marked "fits".
  17. 17

    Plan view

    Tap Plan, above the room, to see the layout from above.

    The stairs with their keep-clear landing in the rec room, the beam and posts hidden in the hall wall, the mechanical room, every room, orange shared walls, doors and furniture.

    The stairs with their keep-clear landing in the rec room, the beam and posts hidden in the hall wall, the mechanical room, every room, orange shared walls, doors and furniture.
  18. 18

    3D view

    Tap 3D to look around the finished basement.

    The same layout in 3D: drag to spin, pinch to zoom.

    The same layout in 3D: drag to spin, pinch to zoom.
  19. 19

    Save

    Tap Save.

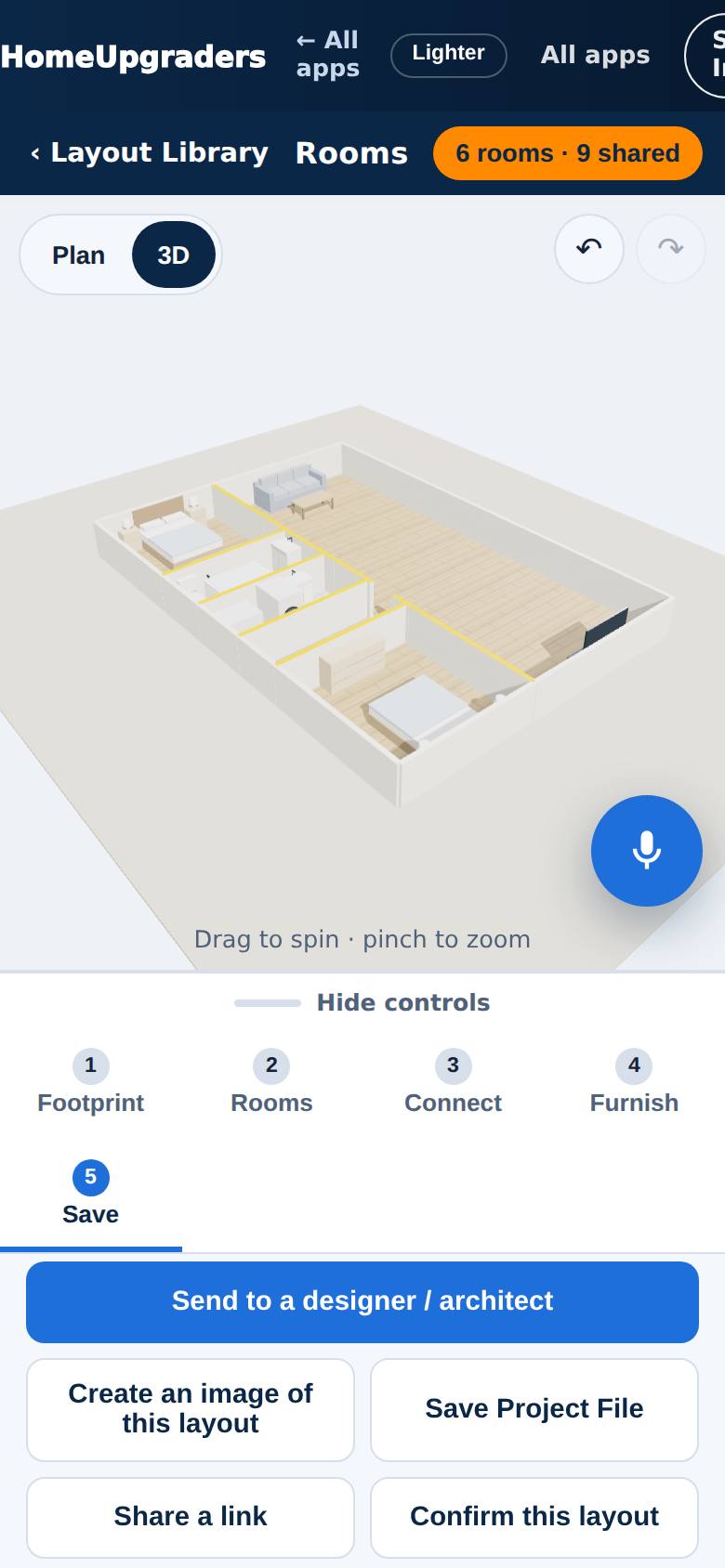

    The layout check says the stairs come down into the rec room. Below: Save to my project (signed in), Save Project File, Create an image of this layout, Share a link, Confirm this layout and Send to a designer / architect.

    The layout check says the stairs come down into the rec room. Below: Save to my project (signed in), Save Project File, Create an image of this layout, Share a link, Confirm this layout and Send to a designer / architect.
  20. 20

    Keep a copy

    Tap Save Project File.

    The project file downloads to your phone (layout-rooms-2026-10-09.json).

    The project file downloads to your phone (layout-rooms-2026-10-09.json).
  21. 21

    Save to your account (needs sign-in)

    Tap "Save to my project".

    Signed out, it says to sign in from the account menu at the top, then tap Save again. The layout stays on this device meanwhile.

    Signed out, it says to sign in from the account menu at the top, then tap Save again. The layout stays on this device meanwhile.

What result should I expect?

A finished basement that fits your footprint — a big rec room, two bedrooms, a bathroom and a laundry — with doorways, furniture placed and anything tight flagged, in plan and 3D. Every room stays editable: tap it to resize, nudge or rename.

How do I save, share or get help?

On Save: Save Project File downloads the whole plan; Share a link; Create an image of this layout; Send to a designer / architect; Confirm this layout. Signed in, Save to my project keeps it in your account.

If something goes wrong

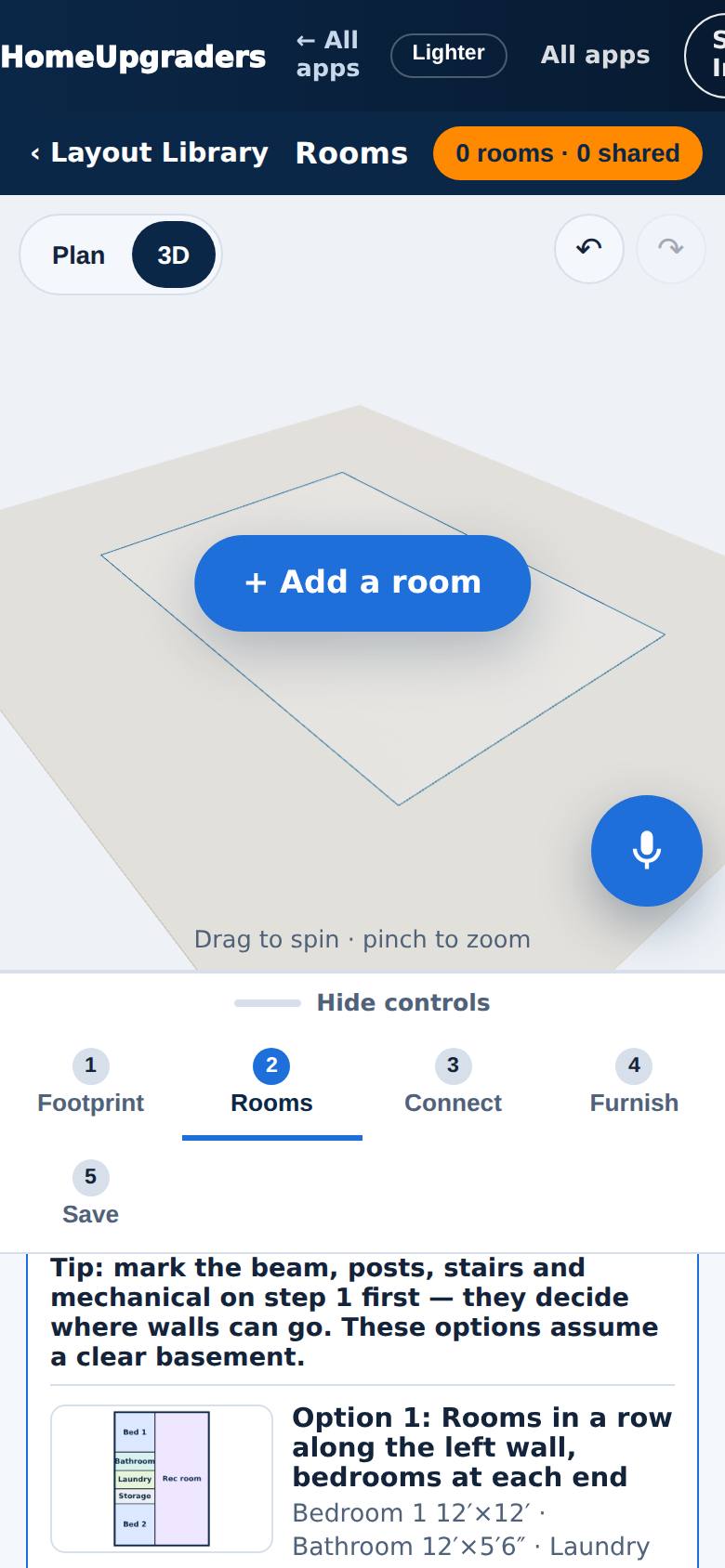

  • No layouts came back. Mark the beam, posts, stairs and mechanical on step 1 first — they decide where walls can go — or ask for fewer rooms.
  • "Dead end" or "stretch the rec room over the bottom of the stairs" in the layout check. The 3 ft of floor at the foot of the stairs has to be inside the hallway or rec room. Tap that room, resize it or Stretch to fill so it covers the dotted box, or move the room that walled it off.
  • A piece is flagged red. Something blocks its clearance (a door swing, the panel's keep-clear zone). Hold and slide it, or furnish that room again.

Every screenshot here was taken while doing these exact steps on the app's current build (77a47a7), on a phone-sized screen, signed out, on 2026-10-09. Steps that need an account are marked. Nothing was submitted or bought.
